Fully & Semi Recessed AED Cabinet



Fully Recessed vs Semi-Recessed

Blending aesthetics, practicality, and function, our fully recessed and semi-recessed wall cabinet sleekly stores your AED while taking up nearly no space otherwise. Created with our customers in mind, the cabinets also feature recessed hinges, a magnetic door deal, and an impressive powder finish.

Fully recessed:  less than 1” protrusion into the room

Semi-recessed: less than 4” protrusion into the room

Option: The 80dB-120dB keyed alarm system housed in a durable internal enclosure offers security for the AED.

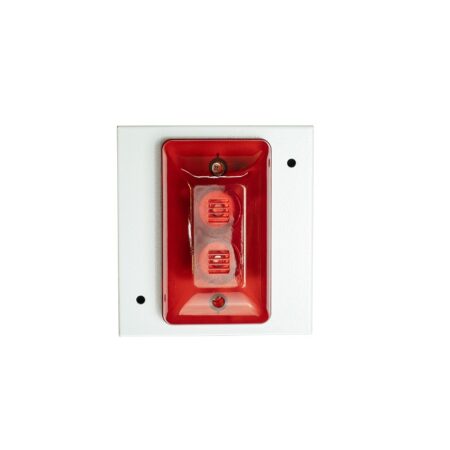

Option: cabinets with strobes come with a satellite strobe light that activates when the door is opened to alert nearby personnel of the AED emergency.

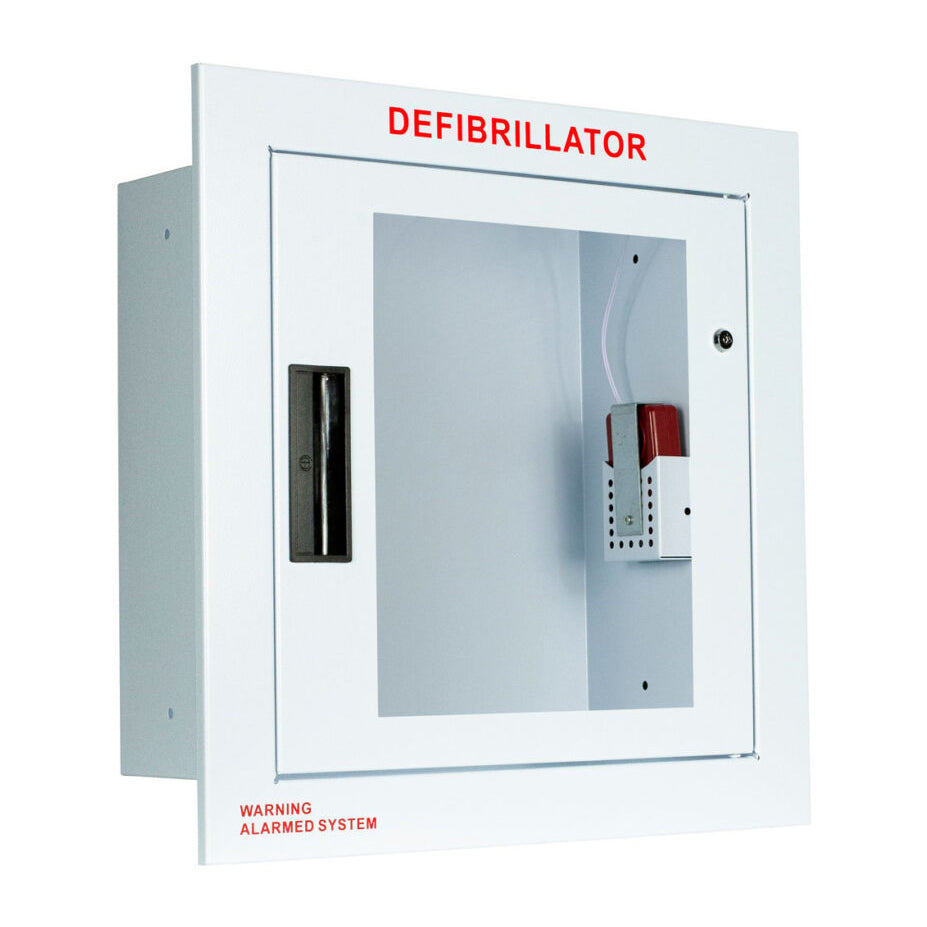

Fully Recessed - Large Cabinet

All versions of the FR-L have been designed to accommodate larger AEDs from major manufacturers, including:

• CardioScience
• Physio-Control
• Zoll
• Defibtech (Lifeline)

Exterior:

16″H x 17″L x 3/8″D.

Rough Wall Opening:

15″H x 16″L x 6 1/2″D.

Tub Dimensions:

14″ H x 15″ L x 7 1/4″D.

Weight: 12 lbs.

Package Dimension:

19″H x 18″L x 9″D.

Weight: 13 lbs.



Fully Recessed - Small Cabinet

All versions of the FR-S have been designed to accommodate smaller AEDs from major manufacturers, including:

• Philips
• Heartsine
• Defibtech (Lifeline View)

Exterior:

13 3/4″H x 16 1/4″L x 3/8″D.

Rough Wall Opening:

12 3/4″H x 15 1/4″L x 6″D.

Tub Dimensions:

11 3/4″ H x 14 1/4″ L x 7″ D.

Weight: 9 lbs.

Package Dimension:

16″H x 18″L x 10″D.

Weight: 12 lbs.

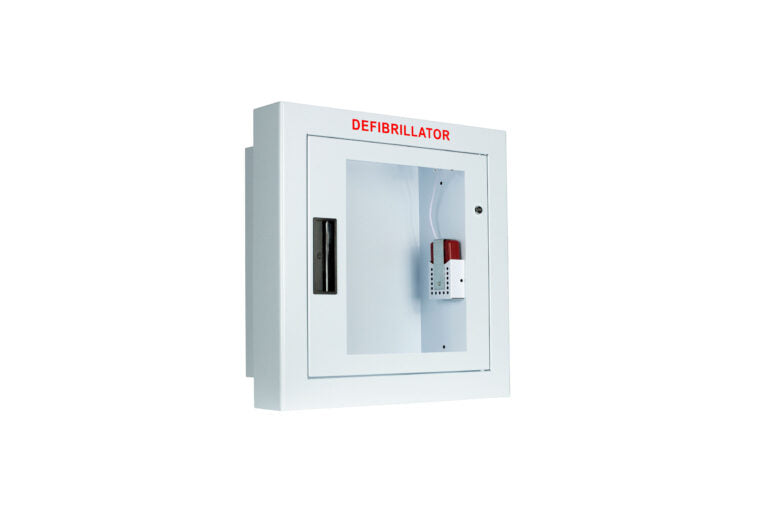

Semi-Recessed - Large Cabinet

All versions of the SR-L have been designed to accommodate larger AEDs from major manufacturers, including:

• CardioScience
• Physio-Control
• Zoll
• Defibtech Lifeline

Exterior:

16″H x 17″L x 3 1/4″D.

Rough Wall Opening:

15″H x 16″L x 4 1/4″D.

Tub Dimensions:

14″ H x 15″ L x 7 1/4″ D.

Weight: 12 lbs.

Package Dimension:

19″H x 18″L x 9″D.

Weight: 13 lbs.

Semi-Recessed - Small Cabinet

All versions of the SR-S have been designed to accommodate smaller AEDs from major manufacturers, including:

• Philips
• Heartsine
• Defibtech View

Exterior:

13 3/4″H x 16 1/4″L x 3 1/4″D.

Rough Wall Opening:

12 3/4″H x 15 1/4″L x 3 1/2″D.

Tub Dimensions:

11 3/4″ H x 14 1/4″ L x 6 3/4″ D.

Weight: 9 lbs.

Package Dimension:

16″H x 18″L x 10″D.

Weight: 12 lbs.
